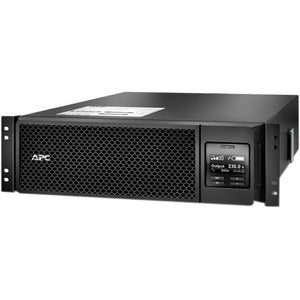

APC by Schneider Electric Smart-UPS SRT 5000VA RM 230V

Item #: 4242988   |   Model #: 0731304301196

  |   10 Questions
Regular price
$9,155.00
Sale price
$9,155.00
Regular price
Sold out
Unit price
per

1 Each

Special Buy

APC by Schneider Electric Smart-UPS SRT 5000VA RM 230V - Rack-mountable - 3 Hour Recharge - 4 Minute Stand-by - 230 V AC Output
Type Value
Alarm Battery Failure
Backup/Run Time (Full Load) 4 Minute
Backup/Run Time (Half Load) 12 Minute
Battery Characteristics Maintenance-free, Sealed, Spill-proof
Battery Chemistry Sealed Lead Acid (SLA)
Brand Name APC by Schneider Electric
Bypass Switch Automatic & Manual
Circuit Breaker Yes
Color Black
Country of Origin Philippines
Depth 28.3"
Emergency Power OFF Yes
Environmentally Friendly Yes
Form Factor Rack-mountable
Height 5.1"
Hot Swappable Yes
Limited Warranty 3 Year
Load Capacity 5000 VA/4500 W
Manufacturer Schneider Electric SA
Manufacturer Part Number SRT5KRMXLI
Manufacturer Website Address http://www.schneider-electric.com
Marketing Information

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Maximum Operating Temperature 104°F (40°C)
Network (RJ-45) Yes
Number of Batteries 1
Output Voltage 230 V AC
Package Contents
  • Smart-UPS SRT 5000VA RM 230V
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Temperature probe
  • Warranty card
  • Web/SNMP management card
  • Product Line Smart-UPS On-Line
    Product Name Smart-UPS SRT 5000VA RM 230V
    Product Type Dual Conversion Online UPS
    Protection Type Lightning
    Sound Emission 55 dB(A)
    Status Indicators LED Indicators
    Thermal Dissipation 272.85 W
    Total Number of Expansion Slo 1
    Typical Battery Recharge Time 3 Hour
    USB Yes
    Waveform Type Sine Wave
    Weight (Approximate) 120.26 lb
    Width 17"
    APC by Schneider Electric Smart-UPS SRT 5000VA RM 230V - Rack-mountable - 3 Hour Recharge - 4 Minute Stand-by - 230 V AC Output
