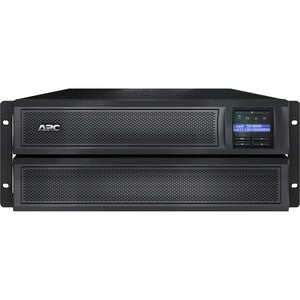

APC by Schneider Electric Smart-UPS X 2000VA Rack/Tower LCD 100-127V - 4U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-20R, 6 x NEMA L5-20R, 1 x NEMA 5-15R
APC by Schneider Electric Smart-UPS X 2000VA Rack/Tower LCD 100-127V - 4U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-20R, 6 x NEMA L5-20R, 1 x NEMA 5-15R
Type |
Value |
Backup/Run Time (Full Load) |
11 Minute |
Backup/Run Time (Half Load) |
28 Minute |
Battery Characteristics |
Spill-proof, Maintenance-free |
Battery Chemistry |
Sealed Lead Acid (SLA) |
Brand Name |
APC by Schneider Electric |
Certifications & Standards |
- BSMI
- CSA
- EN 50091-2
- EN 55022 Class A
- FCC Part 15 Class A
- NOM
- TUV
- UL 1778
- VCCI Class A
- UL 1449
|
Color |
Black |
Depth |
19" |
Emergency Power OFF |
Yes |
Environmental Certification |
REACH |
Environmentally Friendly |
Yes |
Form Factor |
Rack-mountable |
Height |
17" |
Hot Swappable |
Yes |
Input Voltage |
110 V AC |
Limited Warranty |
3 Year |
Load Capacity |
1920 VA/1800 W |
Manufacturer |
Schneider Electric SA |
Manufacturer Part Number |
SMX2000LV |
Manufacturer Website Address |
http://www.schneider-electric.com |
Marketing Information |
Over 20 million units sold - the UPS you can trust APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment. |
Number of Batteries |
1 |
Output Voltage |
120 V AC |
Plug/Connector Type |
NEMA 5-20P |
Product Line |
Smart-UPS |
Product Name |
Smart-UPS X 2000VA Rack/Tower LCD 100-127V |
Product Type |
Line-interactive UPS |
Rack Height |
4U |
Receptacle Detail |
1 x NEMA 5-15R |
Receptacle Type |
NEMA 5-15R |
Serial Port |
Yes |
Transfer Time |
4 ms |
Typical Battery Recharge Time |
3 Hour |
USB |
Yes |
Waveform Type |
Sine Wave |
Weight (Approximate) |
85.19 lb |
Width |
7" |
APC by Schneider Electric Smart-UPS X 2000VA Rack/Tower LCD 100-127V - 4U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-20R, 6 x NEMA L5-20R, 1 x NEMA 5-15R
