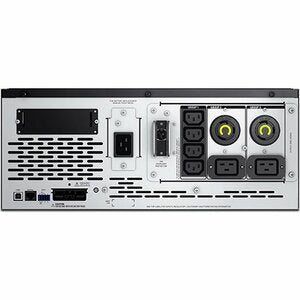

APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V - 4U Rack-mountable, Rack-mountable - 3 Hour Recharge - 6.30 Minute Stand-by - 208 V AC Input - 208 V AC Output - 4 x IEC 60320 C13, 2 x IEC 60320 C19, 2 x NEMA L6-20R
Type |
Value |
Alarm |
Configurable Delay |
Backup/Run Time (Full Load) |
6.30 Minute |
Backup/Run Time (Half Load) |
15.70 Minute |
Battery Characteristics |
Maintenance-free, Sealed, Spill-proof |
Battery Chemistry |
Lead Acid |
Brand Name |
APC by Schneider Electric |
Certifications & Standards |
- C-tick
- CE
- CSA
- EN 50091-1
- EN 50091-2
- EN 60950
- FCC Part 15 Class A
- GOST
- IRAM
- UL 1778
- VDE
- UL 1449
|
Circuit Breaker |
Yes |
Color |
Black |
Cord Length |
6 ft |
Depth |
19" |
Emergency Power OFF |
Yes |
Environmental Certification |
RoHS |
Environmentally Friendly |
Yes |
Form Factor |
Rack-mountable |
Height |
17" |
Hot Swappable |
Yes |
Input Voltage |
208 V AC |
Limited Warranty |
3 Year |
Load Capacity |
3000 VA/2700 W |
Manufacturer |
Schneider Electric SA |
Manufacturer Part Number |
SMX3000HVT |
Manufacturer Website Address |
http://www.schneider-electric.com |
Marketing Information |
Over 20 million units sold - the UPS you can trust APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment. |
Maximum Operating Temperature |
113°F (45°C) |
Number of Batteries |
1 |
Output Voltage |
208 V AC |
Package Contents |
Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V CD with softwareDocumentation CDRack mounting bracketsSmart UPS signalling RS-232 cableUSB cableUser manual |
Plug/Connector Type |
British BS1363A |
Product Line |
Smart-UPS |
Product Name |
Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V |
Product Series |
X |
Product Type |
Line-interactive UPS |
Protection Type |
Surge |
Rack Height |
4U |
Receptacle Detail |
2 x NEMA L6-20R |
Receptacle Type |
NEMA L6-20R |
Serial Port |
Yes |
Sound Emission |
55 dB(A) |
Status Indicators |
LED status display with On Line : On Battery : Replace Battery and Overload indicators |
Surge Energy Rating |
645 J |
Thermal Dissipation |
53.93 W |
Total Number of Expansion Slo |
1 |
Typical Battery Recharge Time |
3 Hour |
USB |
Yes |
Waveform Type |
Sine Wave |
Weight (Approximate) |
85 lb |
Width |
7" |
APC by Schneider Electric Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V - 4U Rack-mountable, Rack-mountable - 3 Hour Recharge - 6.30 Minute Stand-by - 208 V AC Input - 208 V AC Output - 4 x IEC 60320 C13, 2 x IEC 60320 C19, 2 x NEMA L6-20R
