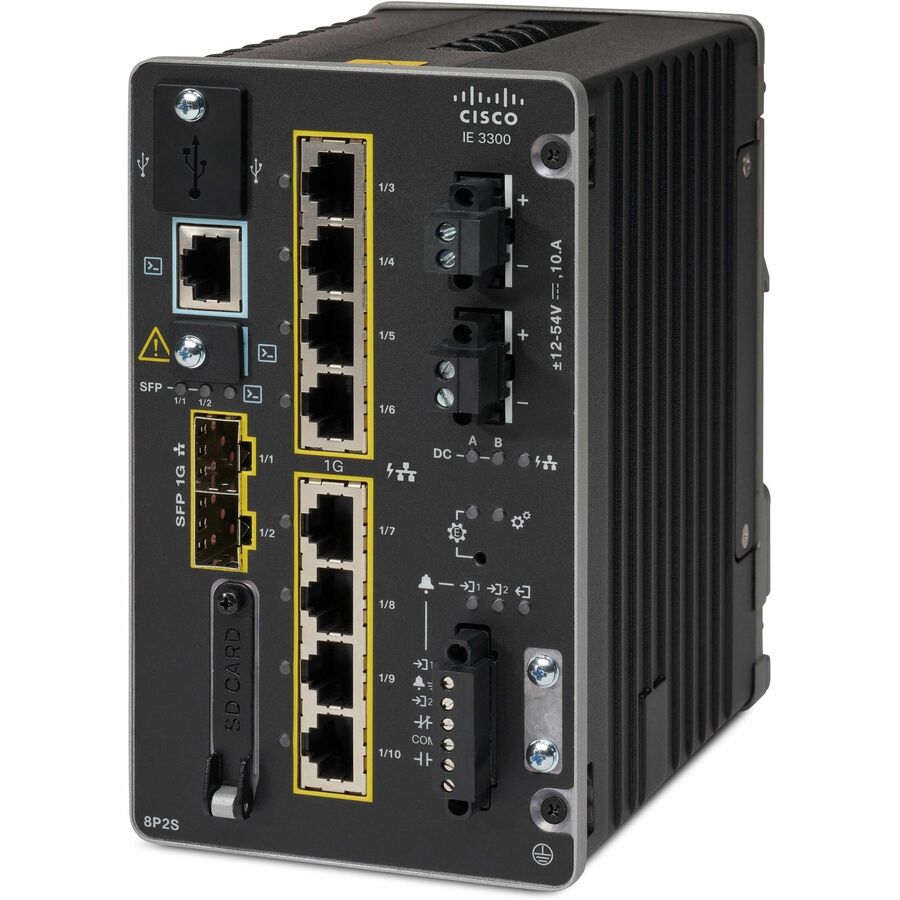

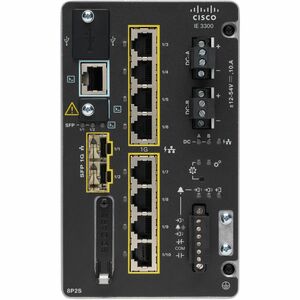

ContactCisco Catalyst IE-3300-8P2S-A Ethernet Switch
Item #: 7435585 | Model #: IE-3300-8P2S-A-RF
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Outdoor |
| Brand Name | Cisco |
| Depth | 5.3" |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Form Factor | DIN Rail Mountable |
| Height | 6" |
| Input Voltage | 54 V DC |
| Layer Supported | 3 |
| Limited Warranty | 5 Year |
| Manageable | Yes |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | IE33008P2SARF |
| Manufacturer Website Address | http://www.cisco.com |

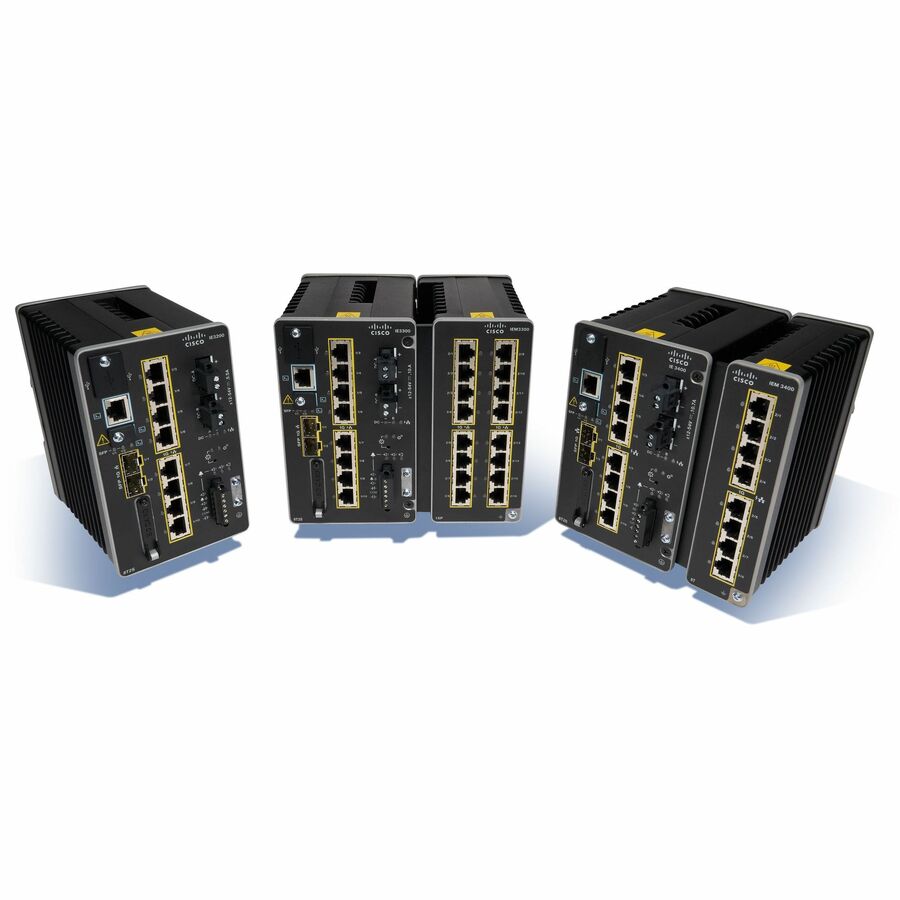

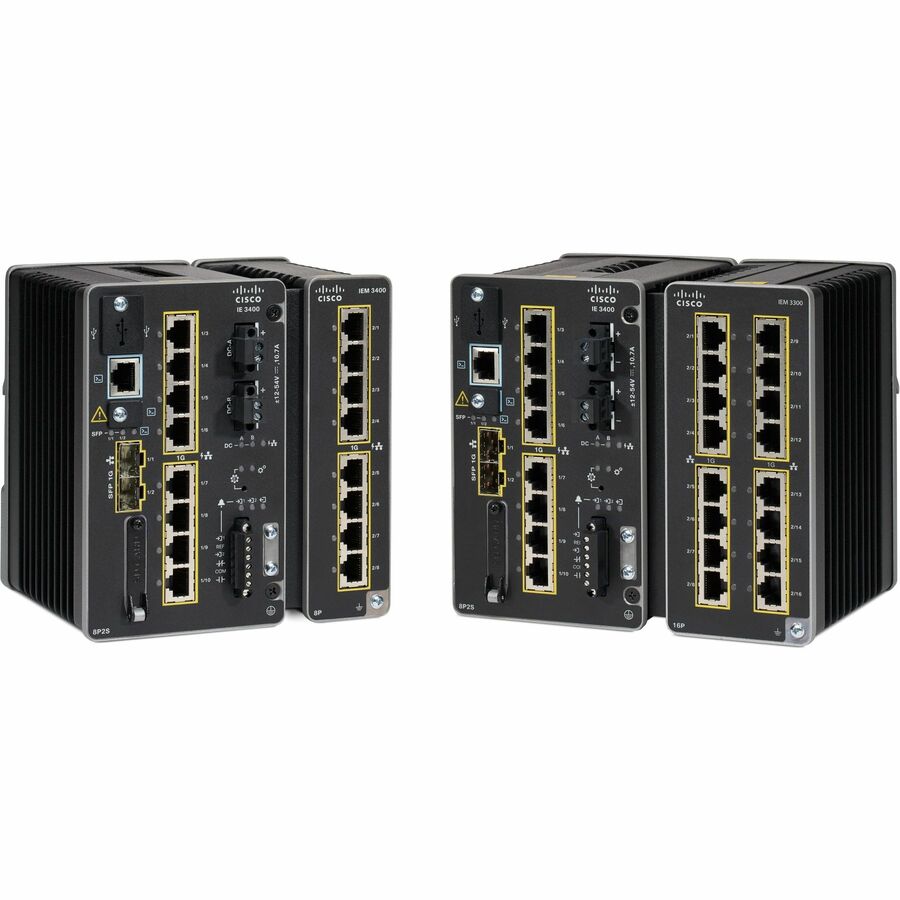

| Marketing Information | The Cisco Catalyst® IE3300 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications. Product overview Cisco Catalyst IE3300 Rugged Series switches deliver high-speed up to 10 Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet or up to 24 ports of Gigabit Ethernet and 2 ports of 10 Gigabit (10G) Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers. These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models. The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Cisco Industrial Network Director, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®. The IE3300 all Gigabit series (with expansion module) supports power budget of up to 360W for PoE/PoE+, shared across up to 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more. The IE3300 10G series (with expansion module) supports power budget of up to 480W (pending safety & compliance approval) for IEEE® 802.3af / 802.3at / 802.3bt (type 3 & type 4), shared across up to 24 ports, and is ideal for connecting high power PoE end devices such as PTZ IP cameras, phones, high power 802.11ac Wave 2 / 802.11ax wireless access points, sensors, and more. |
| Media Type Supported | Optical Fiber |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-X |
| Networking Standards | IEEE 802.3z |
| Number of SFP Slots | 2 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240 W |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Power Consumption | 32 W |
| Power Source | PoE+ |
| Product Condition | Refurbished |
| Product Line | Catalyst |
| Product Model | IE-3300-8P2S-A |
| Product Name | Catalyst IE-3300-8P2S-A Ethernet Switch |
| Product Series | IE3300 |
| Product Type | Ethernet Switch |
| Redundant Power Supply Suppor | Yes |
| Total Number of Expansion Slo | 2.0 |
| Total Number of Network Ports | 8 |
| Uplink Port | Yes |
| Weight (Approximate) | 3.80 lb |
| Width | 3.6" |
