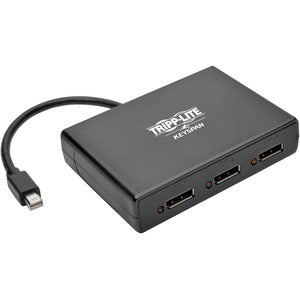

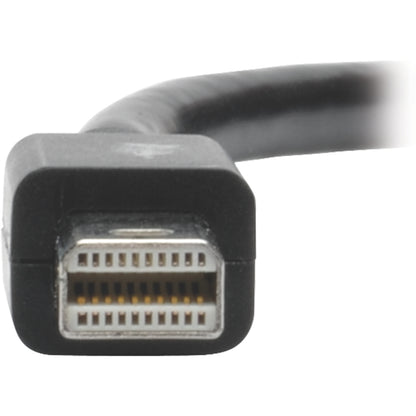

Tripp Lite 3 Port Mini DisplayPort 1.2 to Displayport Multi-Stream (MST) Hub 4K x 2K
Item #: 4524771 | Model #: 0037332192981
| 10 Questions
Type | Value |
---|---|
Brand Name | Keyspan |
Country of Origin | Taiwan |
Depth | 3" |
DisplayPort | Yes |
Environmental Certification | REACH |
Environmentally Friendly | Yes |
Height | 0.9" |
Input Voltage | 5 V DC |
Limited Warranty | 3 Year |
Manufacturer | Tripp Lite |
Manufacturer Part Number | B155-003-DP-V2 |
Manufacturer Website Address | http://www.tripplite.com |

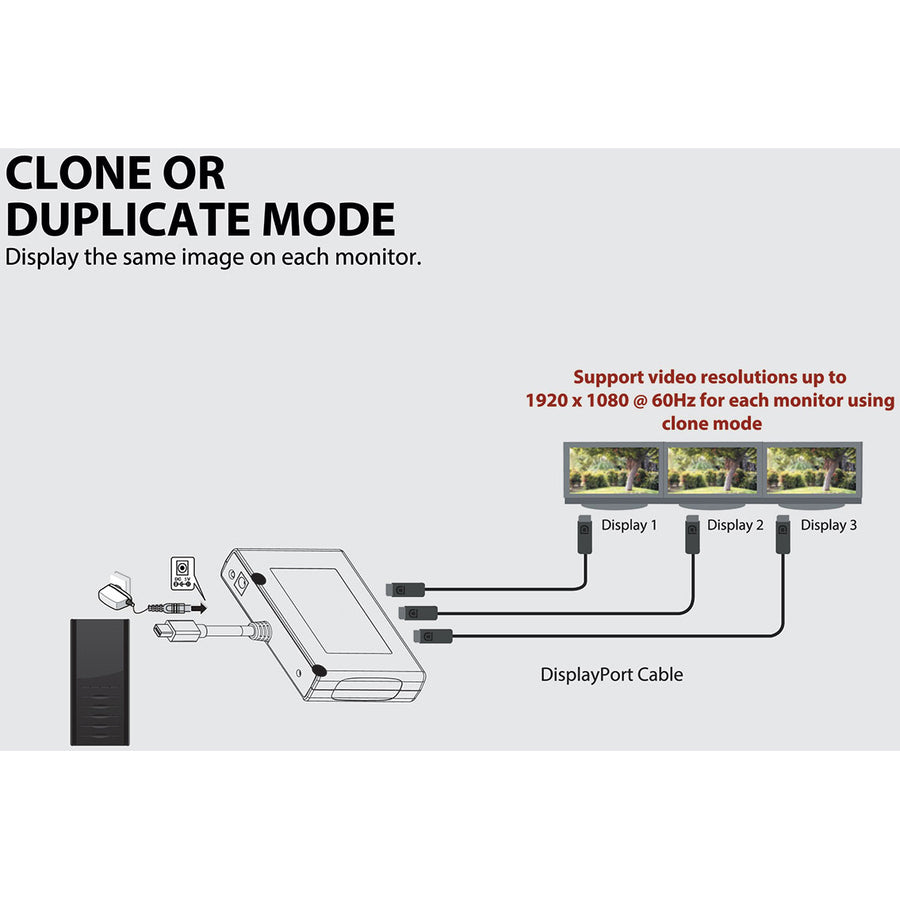

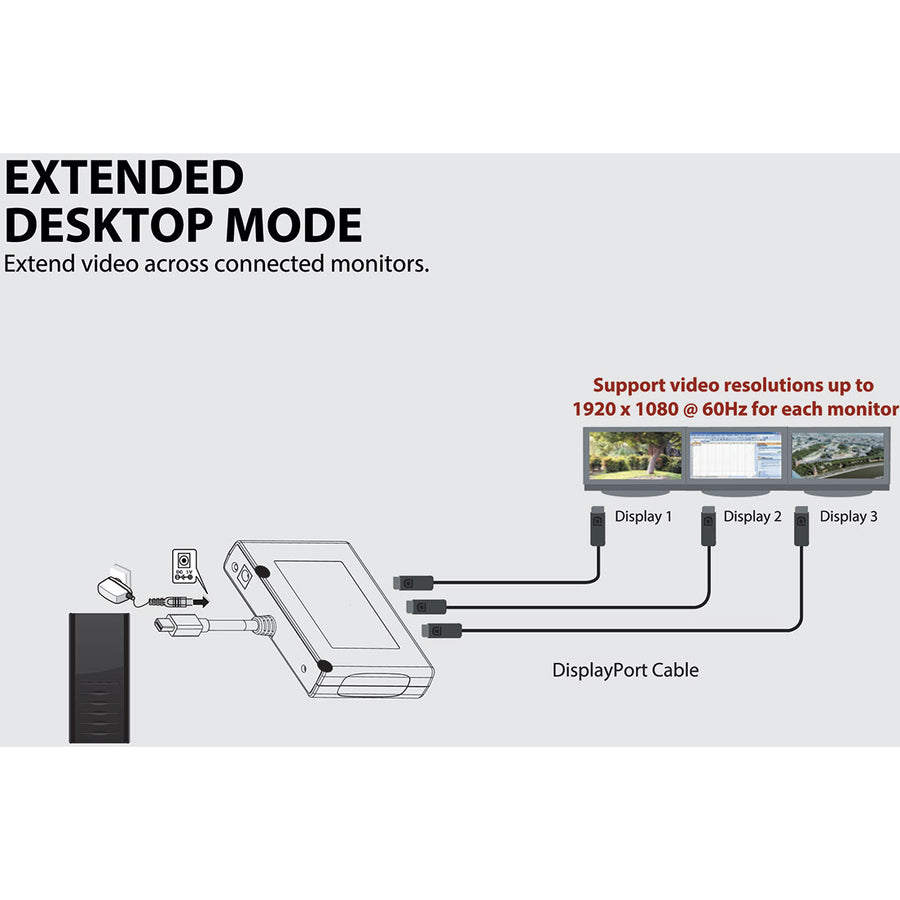

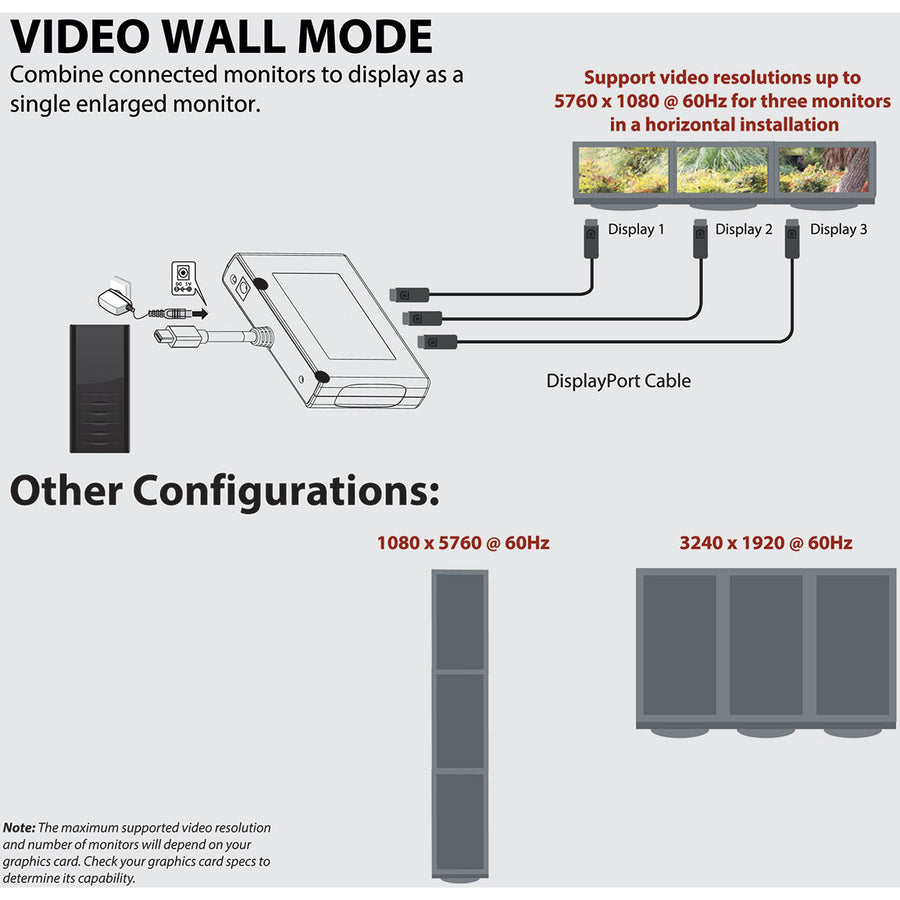

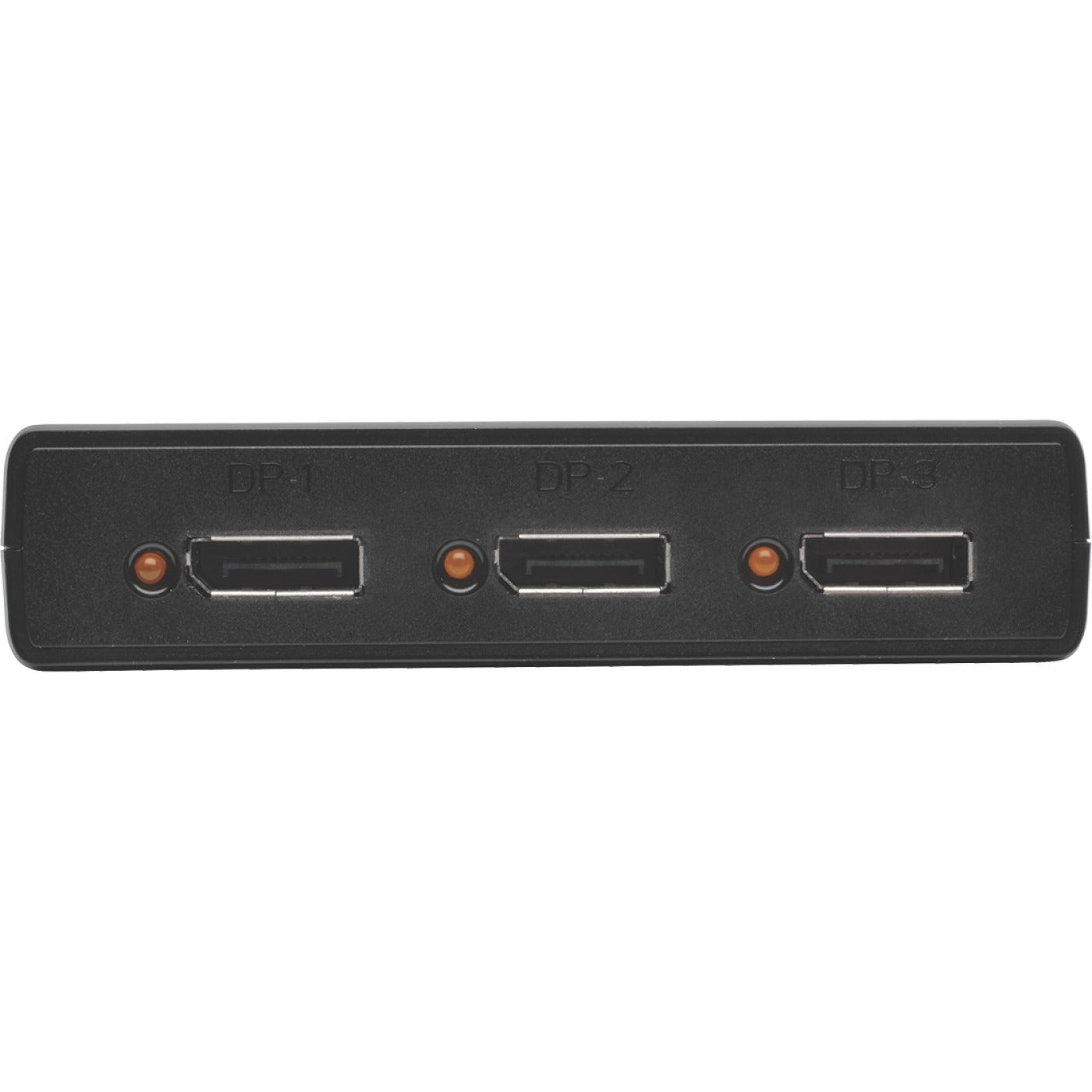

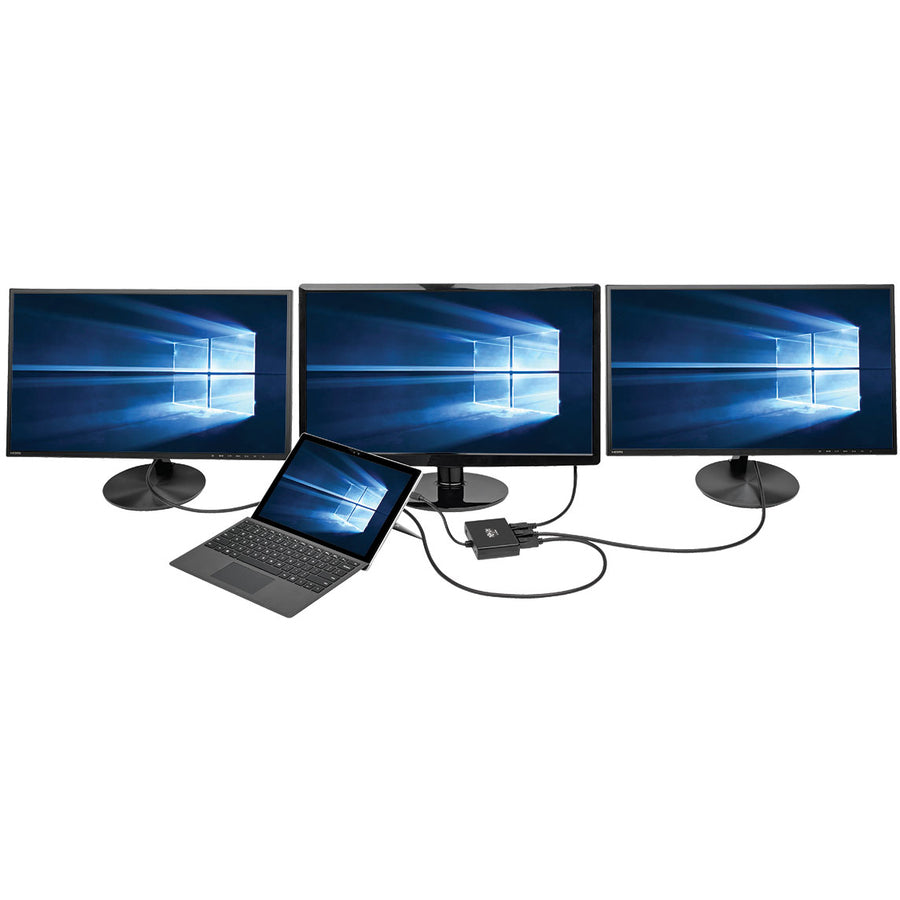

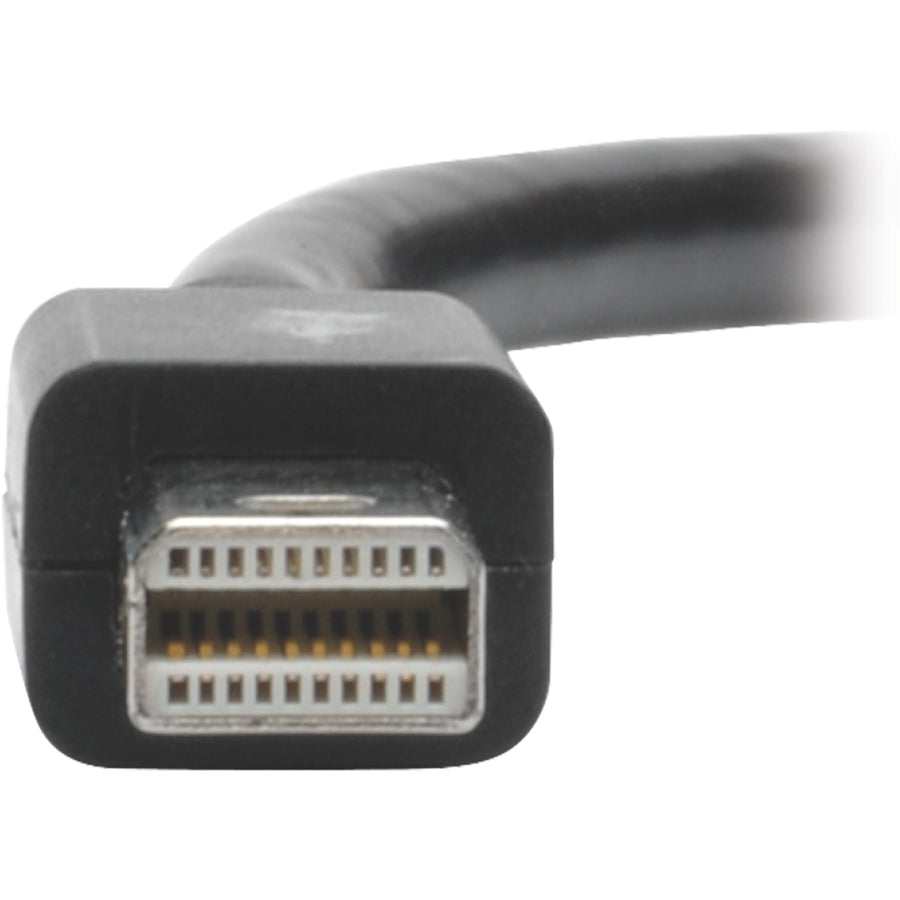

Marketing Information | The B155-003-DP-V2 3-Port Mini DisplayPort 1.2 to DisplayPort MST Hub connects up to three DisplayPort monitors to the MDP output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all three monitors, extend the desktop across them, or combine all three as one large monitor in video wall mode. The B155-003-DP-V2 is compliant with DisplayPort 1.2. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. In video wall mode, it supports expanded resolutions, such as 5760 x 1080 in a horizontal 1 x 3 monitor configuration or 1920 x 3240 in a vertical 3 x 1 configuration. This MST-compliant hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby True HD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in cable connects directly to an MDP source. LEDs indicate when the monitors are receiving a signal. The B155-003-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Features Connects Up to 3 DisplayPort Monitors to Your Computer's Mini DisplayPort (MDP)
Top-Shelf Performance
Easy to Use Almost Anywhere
TAA Compliant
|
Maximum Video Resolution | 3840 � 2160 |
Number of DisplayPort Outputs | 3 |

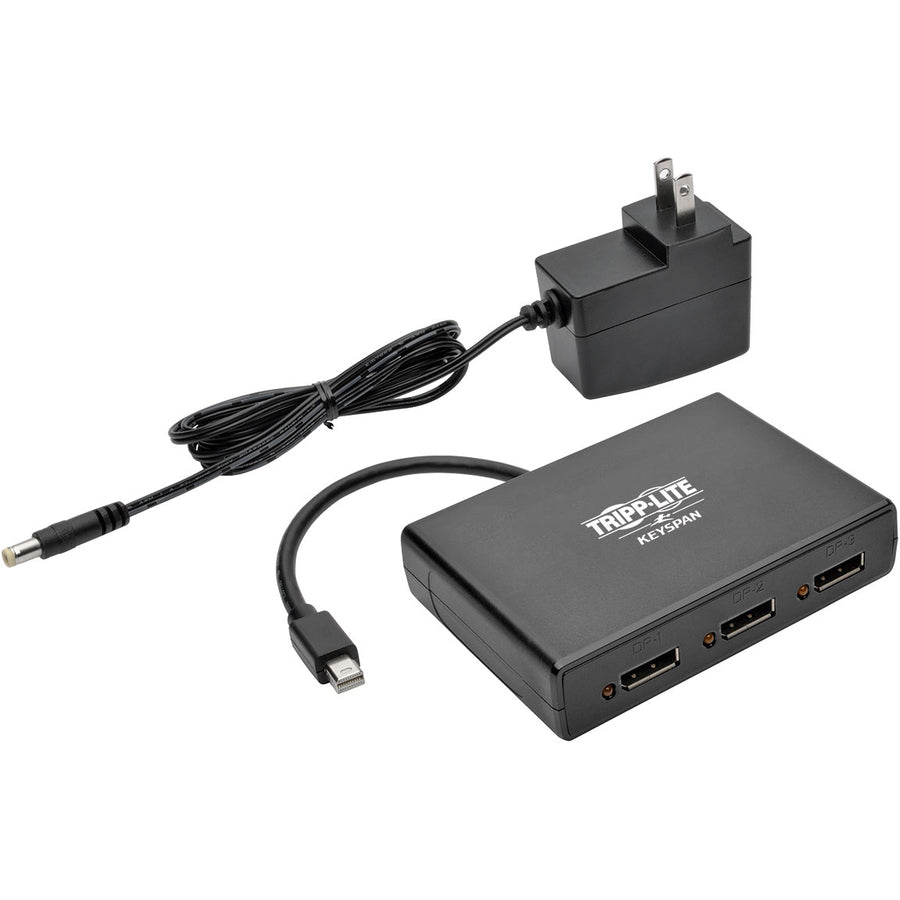

Package Contents |
|
Product Model | B155-003-DP-V2 |
Product Name | 3-Port Mini DisplayPort 1.2 to DisplayPort MST Hub |
Product Type | Signal Splitter |
TAA Compliant | Yes |
Weight (Approximate) | 4 oz |
Width | 4.3" |
