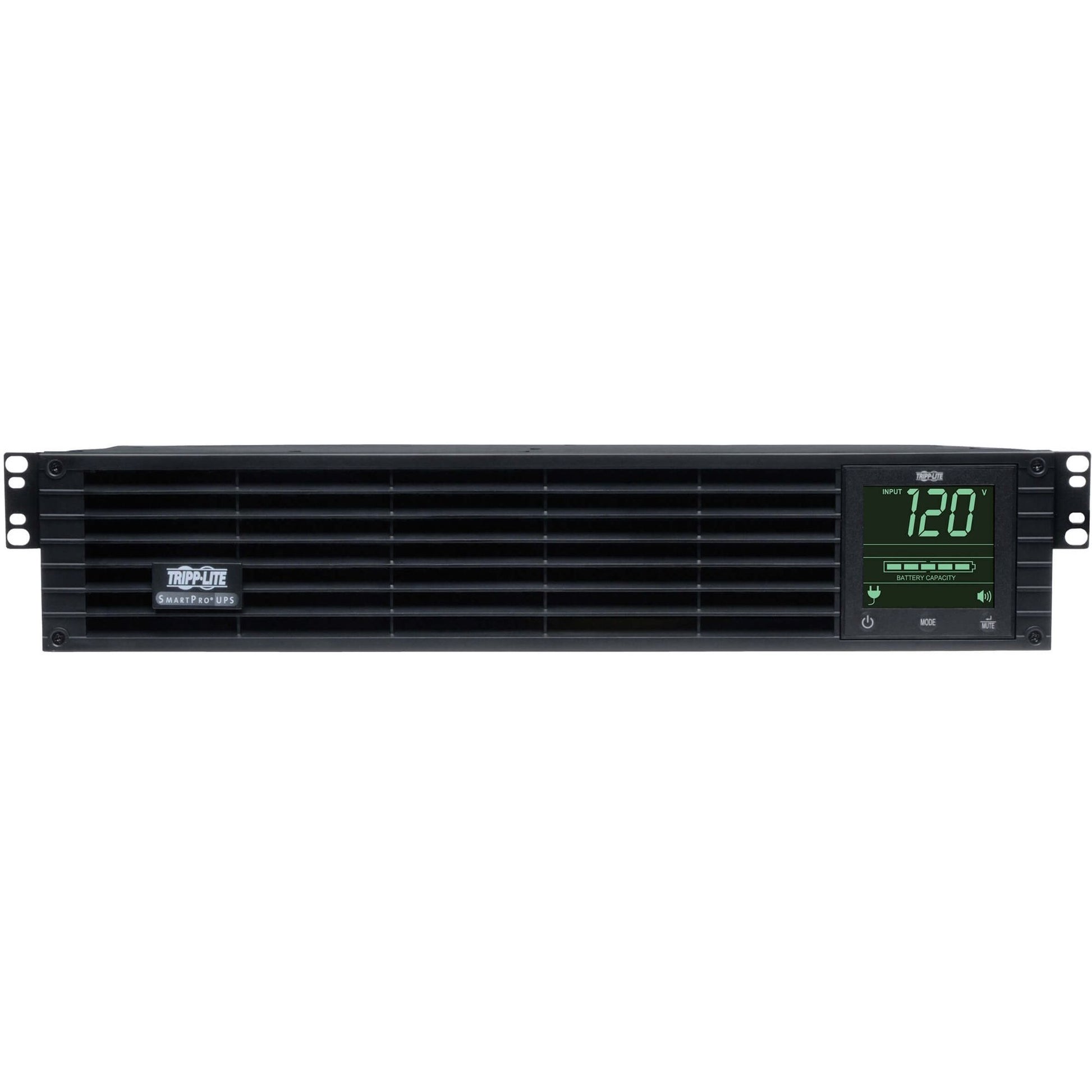

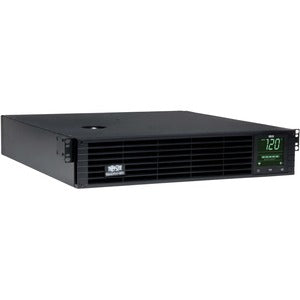

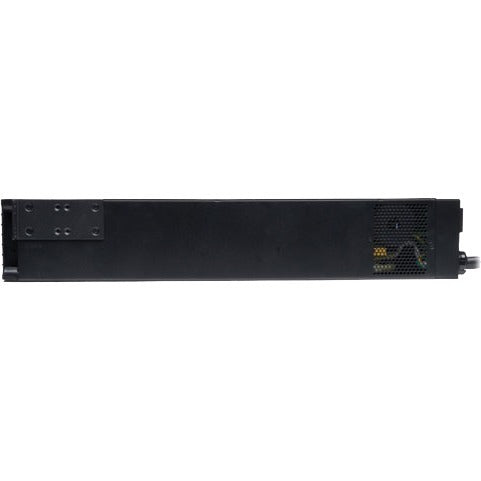

ContactTripp Lite UPS Smart 2200VA 1920W Rackmount AVR 100V/110V/120V Preinstalled WEBCARDLX Pure Sign Wave USB DB9 2U
Item #: QW7996 | Model #: 0037332178015
| 10 Questions
| Type | Value |
|---|---|
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Country of Origin | China |
| Depth | 19.5" |
| Emergency Power OFF | Yes |
| Form Factor | Rack-mountable |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input Voltage | 110 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 2200 VA/1920 W |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | SMART2200RM2UN |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules. |
| Network Management | SNMP Manageable |
| Output Voltage | 120 V AC |
| Package Contents |
|

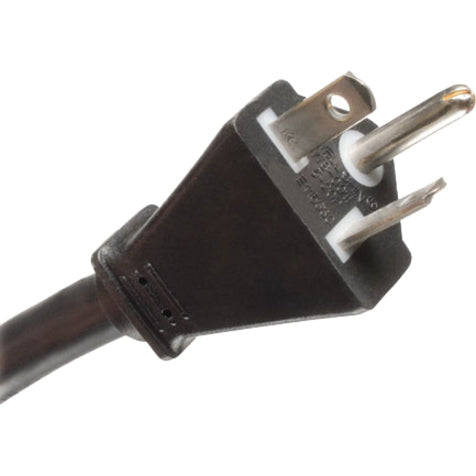

| Plug/Connector Type | NEMA 5-20P |
| Product Line | SmartPro |
| Product Model | SMART2200RM2UN |
| Product Name | SmartPro SMART2200RM2UN 2200VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |

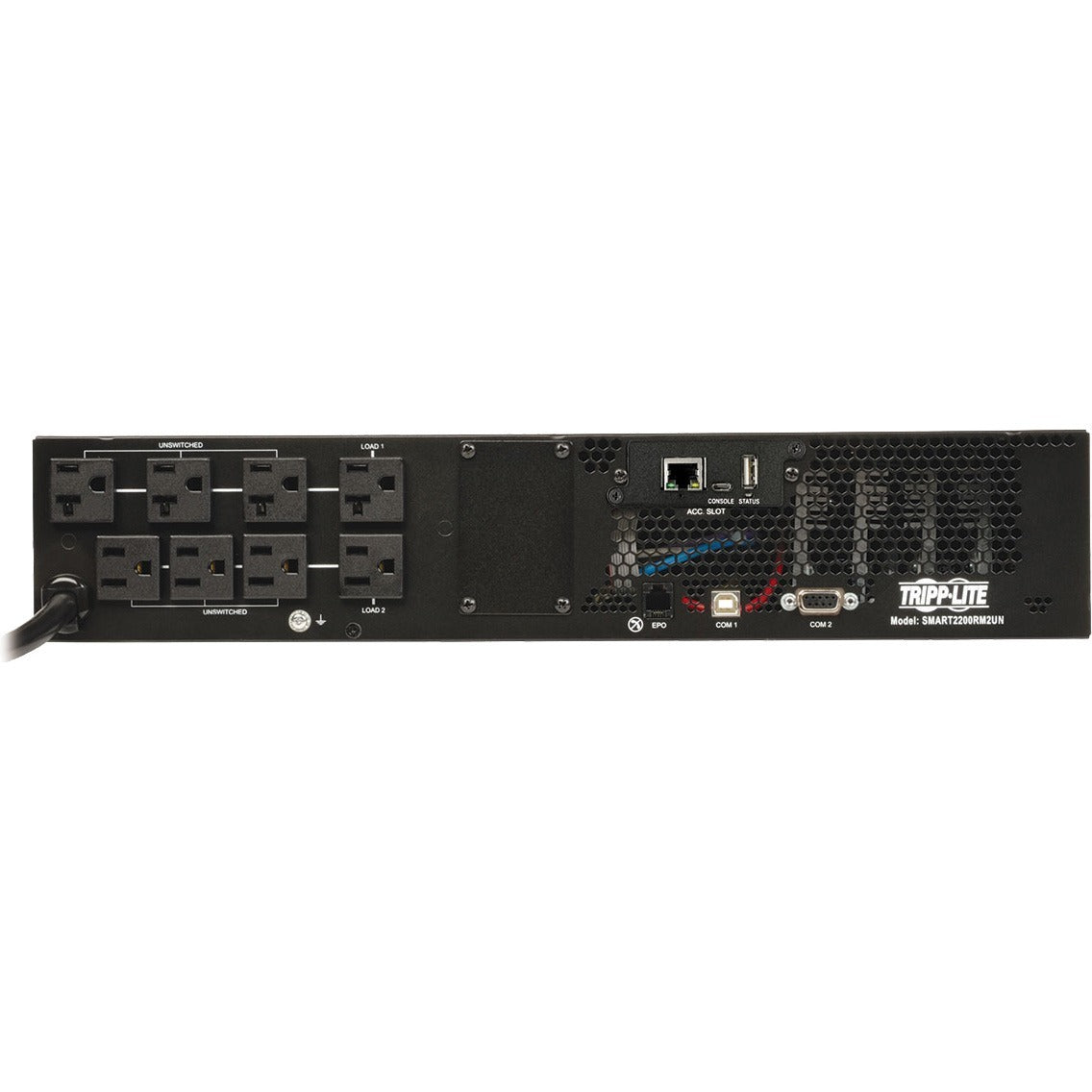

| Receptacle Detail | 4 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Serial Port | Yes |
| Software Included | Poweralert Software |
| Transfer Time | 5 ms |
| Typical Battery Recharge Time | 4.50 Hour |
| USB | Yes |
| Weight (Approximate) | 57.60 lb |
| Width | 17.5" |
